SlimTrim - Custom Slim Floor Molding

SLT-P29

Includes: 1 Track & 1 Shim

SLT-P32

Includes: 1 Tree of 8 Dowels

SLT-P54

Includes: 1 Track & 2 Shims

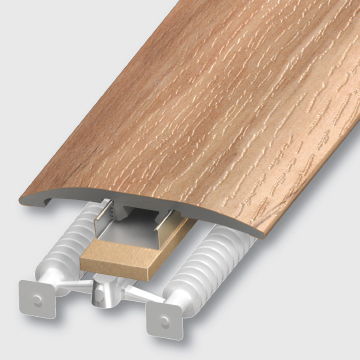

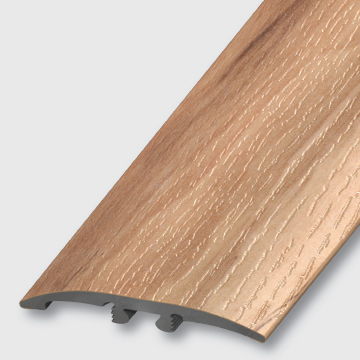

SlimTrim - Floor Edge Trim (3-in-1 Floor Molding)

Our SlimTrim 3-in-1 Floor Molding functions as a moisture-proof reducer, t-molding, and end cap on flooring with a lower profile. Use our SlimTrack and Versatrack Shims when installing on floors up to 1/4” (6.35mm) or our Dowel Tree on flooring up to 3/4” (19mm).


Surface Material: High-Wear Resistant Aluminum Oxide Laminate

Core Material: PVC

Length: 94″ Long

Floor Thickness* Packaging Option Needed Hardware Included
Up to 1/4" (6.35 mm)
Track & Shim
As a T-Molding: 1/4" - 3/8" (6.35 - 9.5 mm)
Track & 2 Shims
Up to 3/4" (19 mm)
1Tree of 8 Dowels

*With our slim laminate molding and all other flooring and stair solutions, all references to flooring thickness refer to the total thickness of all contributing members of the floor installation that’s laid upon the subfloor. This is typically comprised of the flooring plank (i.e., vinyl or laminate), the underlayment–either loose lay or fully attached, and any additional vapor barriers.

SlimTrim - Slim Floor Molding Hardware​

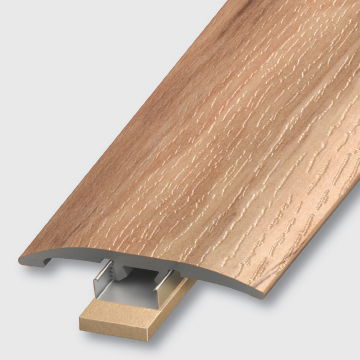

Slim Track​

At Versatrim, we designed our Slim Track to perfectly fit our Slim Trim solutions, so you can have the same floor transition trim on thin floors up to 1/8” (3mm) in thickness, as you would any other floor. To be used in conjunction with the Versatrack Shim with thicknesses of 1/8” (3mm) to 1/4” (6.35mm).

Material: Cold Roll Steel

Length: 94" Long




Versatrack Shim

Our Versatrack Shim is designed to compliment our Versatrack trim molding hardware and is customized to work with floors from 15/32” to 5/8” (12-16mm) in thickness.

Material: Standard HDF

Length: 94″ Long


Dowel Tree​

The Versatrim Dowel Tree was designed for flooring up to 3/4” (19mm), giving our slim floor edge trim the right hardware for the job. This custom Dowel Tree comes as a tree of 8 dowels, which will cover one 94” long SlimTrim 3-in-1 floor molding with each dowel spaced approximately 12” apart and 1” from each end.

Material: High Density Polyethylene
